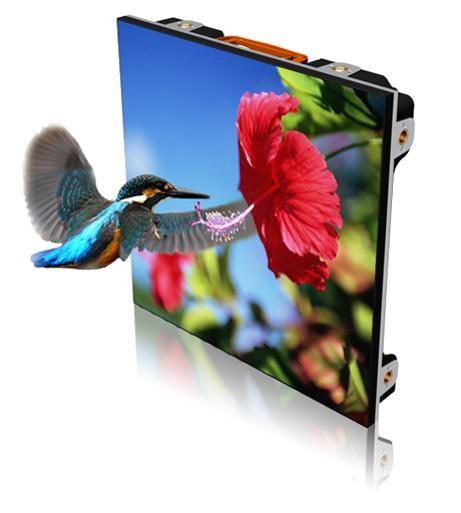

3D P4.81 SMD LED Display 7500cd / m2 , HD Flexible LED Video Display 500 x 500mm Cabinet Size
Products advantages:
1) product advantage: we have 16 years experience to encapsulate.
2) Price advantage: we have the best competitive price and the same even better quality at the market
3) Performance advantage: Best equality, high consistency ,big viewing angle ,can repair each led lights.
4) Quality advantage: From material to finished product, from design to produce, we control all steps, that’s the guarantee of the quality and reliability.
5) Service advantage: Better service at the same situation, better cooperation at same service!
Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendable solve the problem of the mosaic, have the excellent consistency of light
3) Big viewing angle to 110 degree at horizontal line, 75 degree at vertical line, you can see at every angle at this range, high brightness, high resolution , clear and non-flash screen image, long service life.
Specifications:
| Parameter*Modules | Unit | Value |
| Pixel pitch | mm | 4.8mm |
| Pixel density | dots/sqm | 43264 |
| Pixels | Dots | 52x52 |
| Size | mm | 250x250 |
| Pixel type and configuration | | 3 Chips in 1 SMD LED(2727) |
| Brightness | nits(cd/sq.m) | >6000 |
| Drive type | | 1/13 Scan |
| Viewing angle-Horizontal | deg. | 130 (-65 ~ +65) |
| Viewing angle-Vertical | deg. | 130 (-65~ +65) |
| Red wavelength(dominant) | nm | 620-625 |
| Green wavelength(domi.) | nm | 520-525 |
| Blue wavelength(domi.) | nm | 470-475 |
| Lifetime(50% brightness) | Hours | 100,000 |
| Parameter*Cabinet | Unit | Value |
| Width | mm | 500mm |
| Height | mm | 500mm |
| Aspect ratio | | 1:01 |
| Diagonal | mm | 707 |
| Depth | mm | 75 |
| Area | sq.m | 0.25 |
| Weight | Kg | 9.5 |
| Pixels | dots | 104×104=10816 |
| Material | | Aluminum |

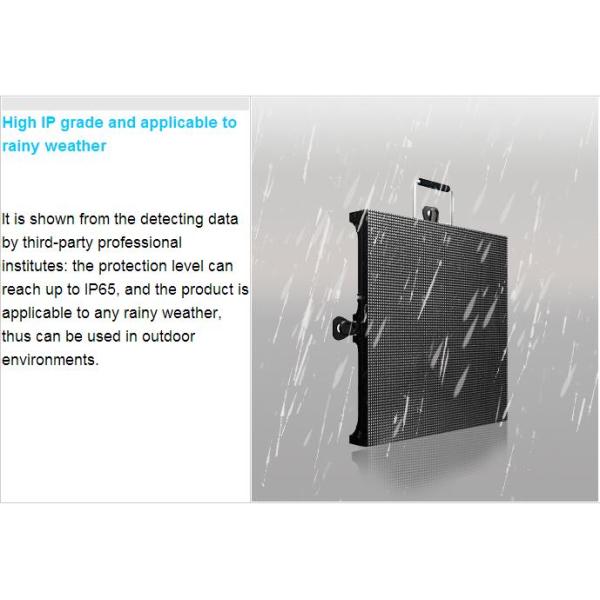

| Ingress protection | IP | IP65 |
| Operating temperature range | ℃ | -20 ~ +60 |
| Humidity operating | RH | 10% ~ 90% |
| Best viewing distance | m/feet | 5~ 13m /16~ 43’ |
| Input voltage(nominal) | V/AC | 110 /240 |
| Input power frequency | Hertz | 50/ 60 |
| Input power(max) | Watts | 200 |
| Input power(typical) | Watts | 80 |
| Cooling system | | AIR |
| Parameter*Screen | Unit | Value |
| Colours | | 1073.7 trillion |
| Grey scale(linear) | Levels | 1024 levels per color |
| Brightness Control | Levels | 256 |
| Processing depth | bit | 14 ~ 16 |
| Video frame rate | Hertz | 30/60 |
| Display refresh rate | Hertz | 1200 ~ 2400 |
| Multimedia data format | | MPG,AVI,WMV,RM etc. |
| Data interconnection | | Cat 5E UTP /Optic Fiber |
Products function introductions:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendable solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 120 degree at horizontal line, 160 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
Products application area:
1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, meeting room
Main Export Markets:
a) Asia
b) Australasia
c) Central/South America
d) Eastern Europe
e) Mid East/Africa
f) North America
g) Western Europe
Primary Competitive Advantages:
1. Packaging
2. Quality Approvals
3. Green Product
4. Price
5. Reputation
6. Guarantee/Warranty
7. Product Features
8. Service
9. International Approvals
10. Product Performance
11. Small Orders Accepted
12. Military Specifications
13. Prompt Delivery
